N1

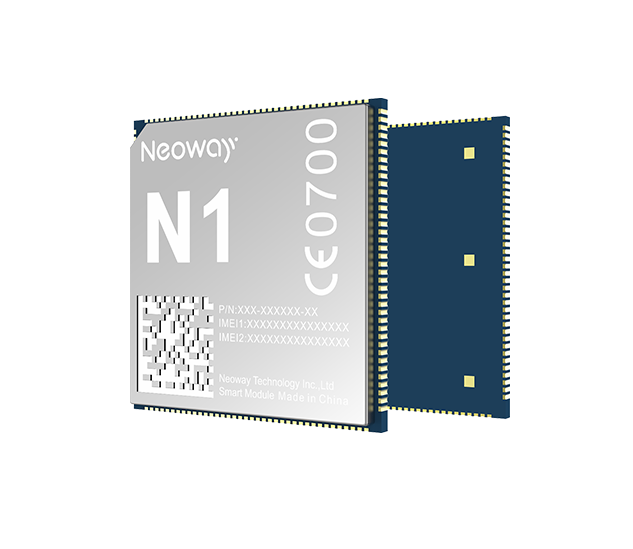

Neoway N1 is an intelligent 4G module that supports all network modes and runs Android OS. It supports different audio codec and integrates high-performance graphic engines. Neoway N1 provides rich audio and video IO interfaces and GPIOs. It is well applicable to handheld devices, smart POS, in-vehicle devices, interactive terminals, multimedia terminals, smart homes, and other IoT terminals. Neoway N1 can ensure stable high-speed connectivity and provide high-efficient audio&video and graphic processing capability for excellent interaction experience. The dual-SIM dual-standby function allows customers to back up communications and have more data quota options. Smart module Neoway N1 provides rich peripheral interfaces and SDK to meet customers' service requirements flexibly.
Ask a Question Document Download
Product Features
Quad-Core A7@1.3 GHz
Built-in GPS/Wi-Fi/BT
4G 7-mode
Support LCM / camera
Dual SIM
Android 5.1 / 8.1
Excellent video coding
Specifications
Supply voltage 3.5 V to 4.2 V, typical: 3.9 V
Dimensions 40.0 mm x 40.0 mm x 2.8 mm
Package 152-pin LCC
OS Android 5.1 / 8.1
MCP 8 GB eMMC+1 GB LPDDR3 (Default)
16 GB eMMC+2 GB LPDDR3 (Optional)
Connectivity GNSS: GPS/BDS/GLONASS
BT: BT4.1LE
Wi-Fi: 2.4G, 802.11b/g/n
FM: support
LCM 1 MIPI_DSI, HD (720P×1280)
Camera 2 MIPI_CSI, up to 8 MP
Coding&Decoding Coding
720P@30 fps@H.264
480P@30 fps@MPEG-4/H.263/VP8

Decoding
1080P@30 fps@H.264/H.265/MPEG-4/DivX/VP8
480P@30 fps@H.263
Frequency bands CN:
LTE FDD: B1/B3
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8
TD-SCDMA: B34/B39
CDMA2000 1X/EV-DO: BC0
GSM: 850/900/1800/1900 MHz

EU:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B40
WCDMA: B1/B8
GSM: 850/900/1800/1900 MHz
Region China/India/SEA/Europe/Africa
Certifications CCC, CE, RoHS
Use Cases
